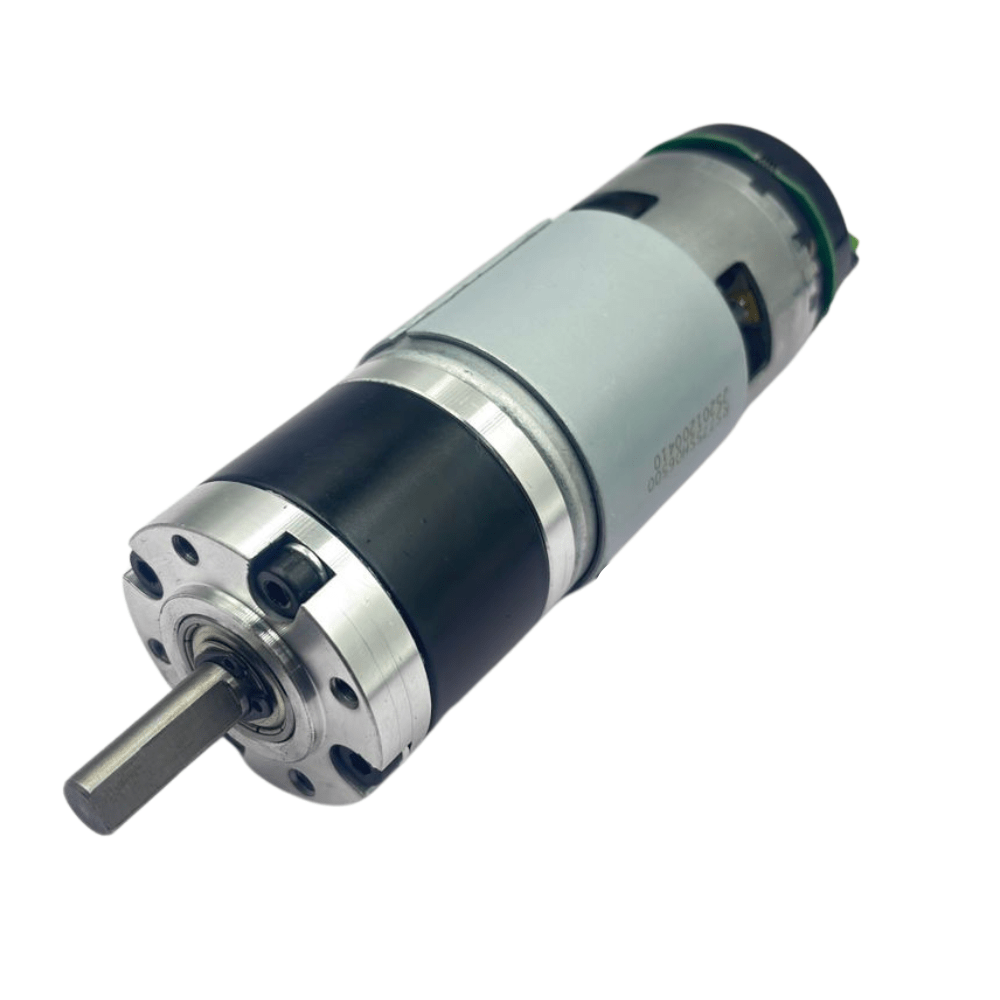

42GX-775 12V 30RPM 60Kgcm Planetary Gear Motor With Encoder

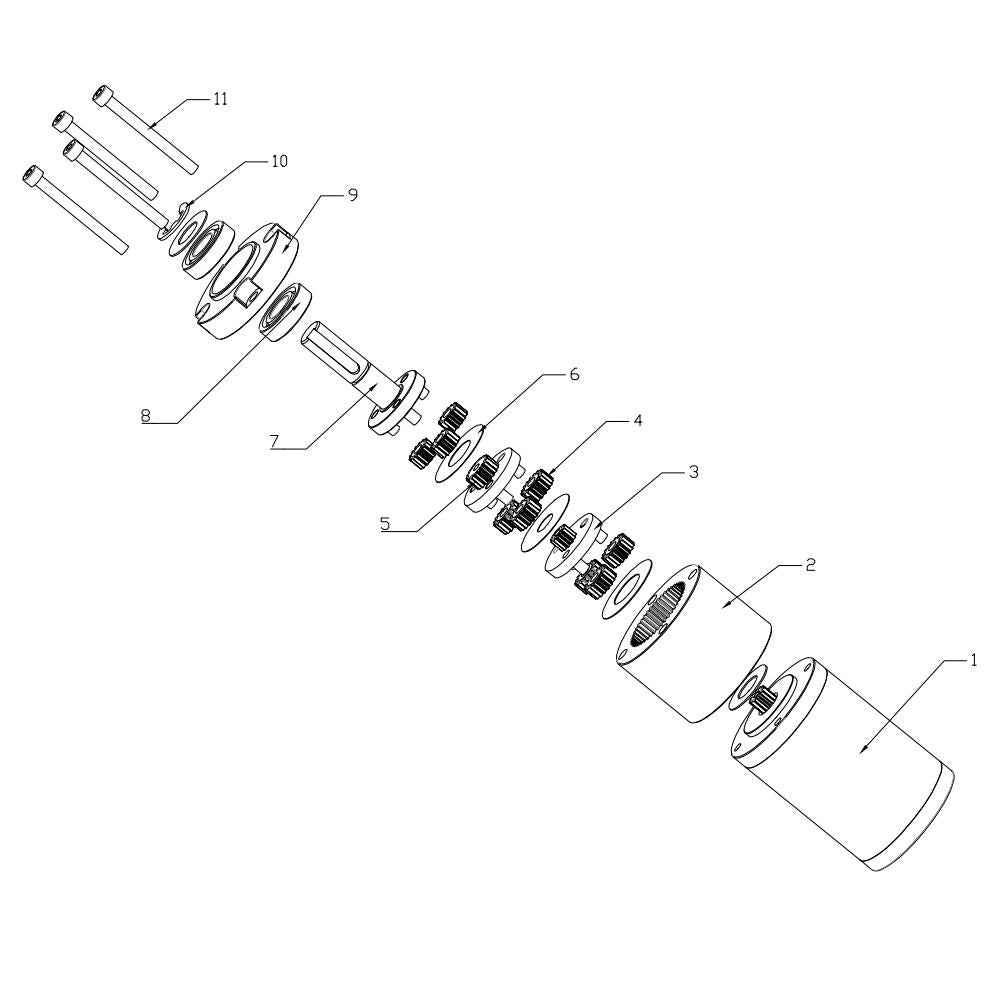

lanetary gears are often used when space and weight are an issue, but a large amount of speed reduction and torque are needed. This requirement applies to a variety of industries, including tractors and construction equipment where a large amount of torque is needed to drive the wheels. Planetary Gear Motor offers several advantages over other types of gearboxes, including higher power density, compact size, and lightweight. The power density of planetary gearboxes is high because the load is shared by multiple planet gears, which allows for more efficient energy transfer.

DC motor encoders are used for speed control feedback in DC motors where an armature or rotor with wound wires rotates inside a magnetic field created by a stator. The DC motor encoder provides a mechanism to measure the speed of the rotor and provide closed-loop feedback to the drive for precise speed control.

By itself, a DC motor can’t be controlled like a servo motor or a stepper motor. But add an encoder, and you unlock the full potential of the DC motor. Using this approach, you can harness the simplicity, even torque, and lightweight profile of a DC motor for your controlled application.

Wiring Diagram:

• Hall Sensor VCC 5V+
• Hall Sensor GND
• Hall Sensor Channel A Output to Micro-Controller
• Hall Sensor Channel B Output to Micro-Controller
• Motor +
• Motor –
