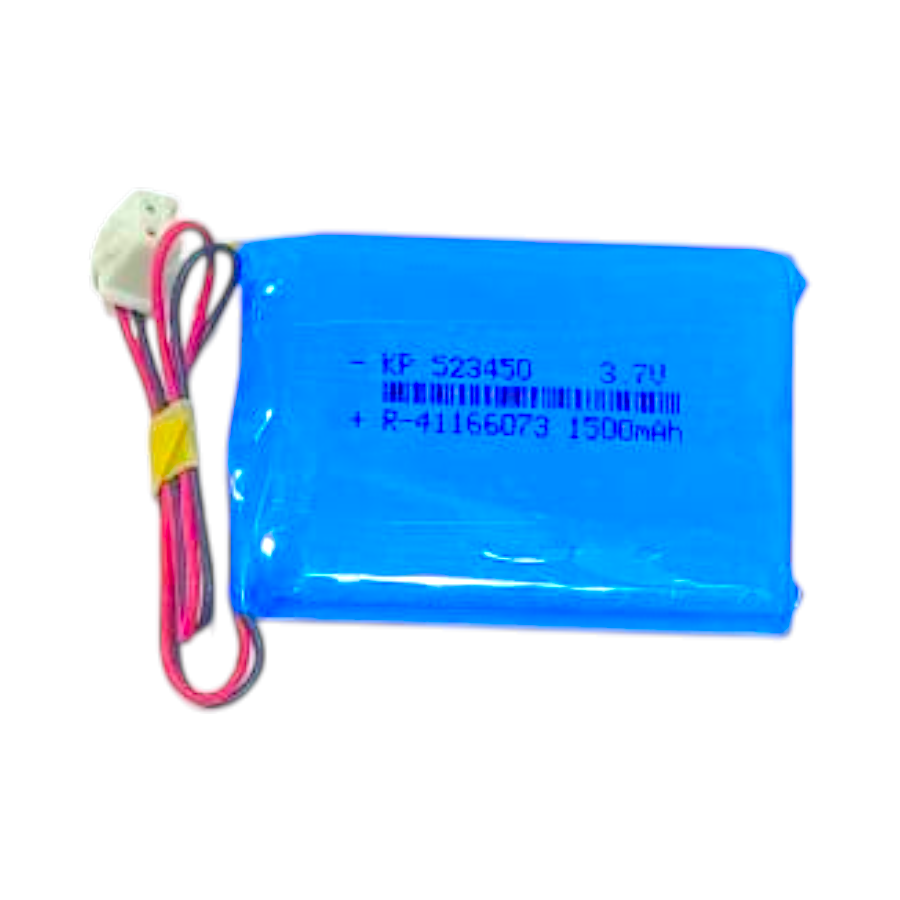

KP Original 523450 1500mAh 3.7V single cell Rechargeable LiPo Battery (Blue)

Introducing the KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery, designed for compact electronic devices requiring reliable power in a small form factor. With its high energy density and lightweight design, this battery is ideal for applications in drones, remote controls, wearables, and other portable electronics.

Features:

• Overcharge Protection: Yes
• Over-discharge Protection: Yes
• Short Circuit Protection: Yes
• Fire Resistance: Designed with protective features to minimize fire hazards.

Specifications:

• Model Number: 523450
• Type: Lithium Polymer (LiPo)
• Configuration: Single Cell
• Nominal Voltage: 3.7V
• Capacity: 1500 mAh
• Discharge Rate: 1C (1500 mA continuous current)
• Charge Voltage: 4.2V (maximum)
• Discharge Cut-off Voltage: 3.0V (minimum)
• Temperature Range for Charging: 0°C to 45°C
• Temperature Range for Discharging: -20°C to 60°C
• Charging Method: Constant current / constant voltage (CC/CV)
• Recommended Charge Current: 0.5C to 1C (750 mA – 1500 mA)
• Charge Time: Approximately 1.5 to 3 hours, depending on charge current.

Applications:

• Commonly used in:
• Remote control devices
• Drones and UAVs
• Mobile devices and electronics
• Wearable technology
• Portable power application

Package includes:

• 1 x KP Original 523450 1500mAh 3.7V single cell Rechargeable LiPo Battery

KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable Overview

The KP Original 523450 is a single-cell Lithium Polymer battery offering a nominal voltage of 3.7V and a capacity of 1500mAh. Its slim 49×34×4mm design and reliable safety protections make it ideal for compact electronic devices.

Key Features of KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable

• 1500mAh capacity at 3.7V nominal voltage for extended run-time
• 1C (1500mA) continuous discharge rate for consistent power delivery
• Built-in overcharge, over-discharge and short-circuit protection
• Fire-resistant construction with protective features to minimize hazards
• Compact dimensions (49×34×4 mm) for tight installations
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• Micro and mini drones requiring lightweight power sources
• Remote control cars, boats and aircraft with moderate current draw
• Wearable electronics, fitness trackers and smart garments
• Portable sensors, data loggers and IoT prototypes
• DIY robotics and microcontroller-powered devices

How to Use KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable

Attach the battery to a dedicated LiPo charger set to a maximum of 4.2V and a charging current up to 1C (1.5A). After full charge, connect the battery leads—observing correct polarity—to your device’s power input. Monitor voltage during operation and avoid discharging below 3.0V to protect battery health.
